Overview

In this Getting Started guide, I will explain how you can quickly get started with MQTT Service, which is currently in public preview.

About MQTT Service

MQTT Service is a new service offered by Cumulocity. It provides a full-fledged MQTT Broker with full flexibility regarding topic structures and payloads.

If you want to learn more about MQTT Service, check out this post & video:

MQTT Service Public Preview

Overview The Cumulocity Team are excited to introduce you to Cumulocity’s brand new MQTT Service as a public preview – a powerful addition to our IoT platform that’s going to make device integration simpler, more flexible, and more scalable. In this article we will give an overview what it is about & what you can expect. If you are interested in more information check out the latest video: [Cumulocity MQTT Service Public Preview Introduction] What it is about? Why a new MQTT Serv…

or the documentation:

MQTT Service - Cumulocity documentation

Step-by-Step Guide

1. Make Sure MQTT Service Is Available

First, we need to check that all prerequisites are fulfilled. The first step would be to check if MQTT Service is already available for your Cumulocity Tenant.

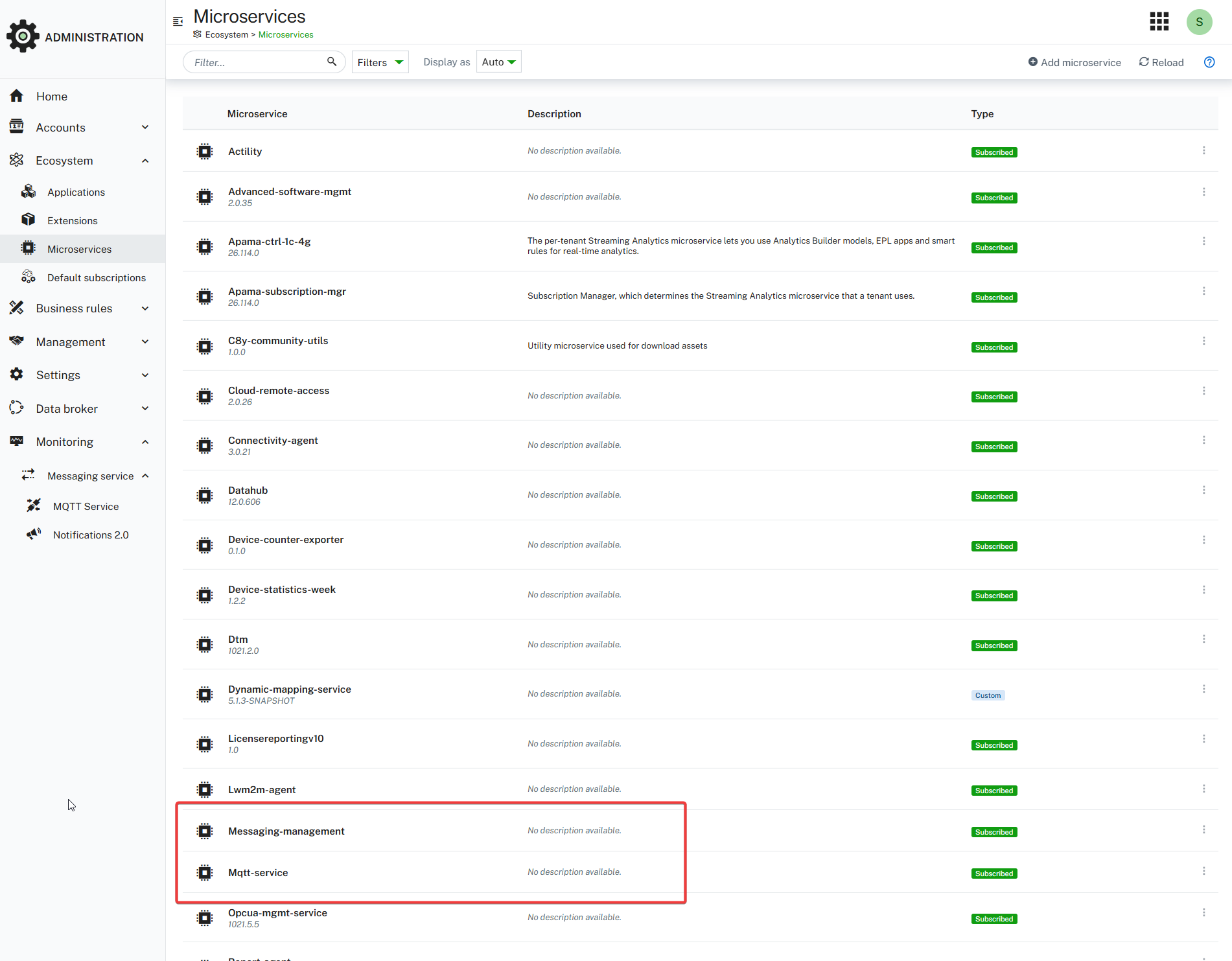

For that, you can go to your tenant Administration → Ecosystem → Microservices
Filter or look for Mqtt-service and Messaging-management.

Here we go, MQTT-Service & Messaging-management are installed.

2. Install Management UI

Now we should make sure to install the new Management UI for MQTT Service and Notification 2.0.

You can find it on the user menu when clicking on your user profile in the top right. Select Manage beta features in the section Beta features.

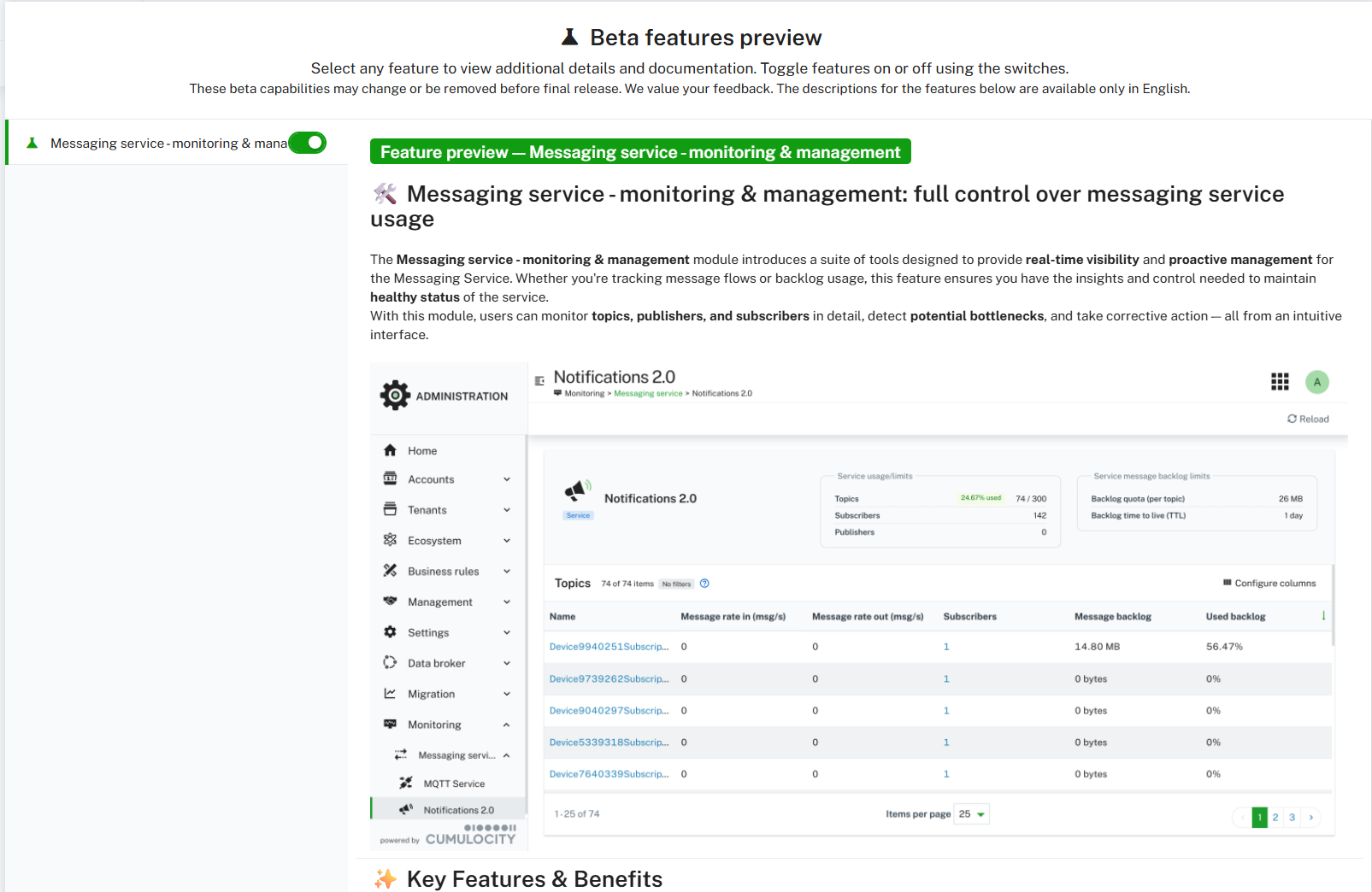

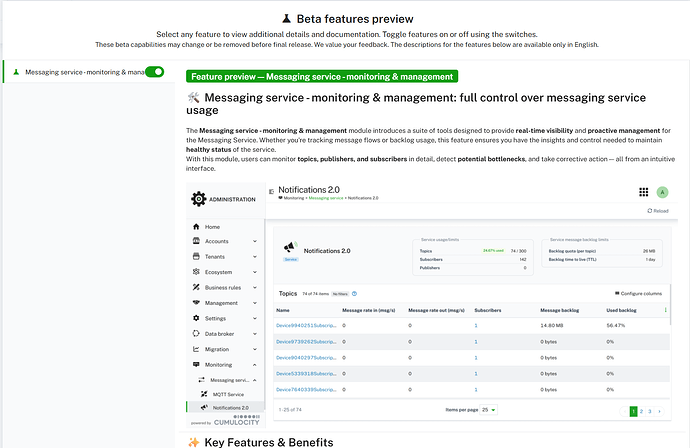

Toggle the Messaging service-monitoring & management

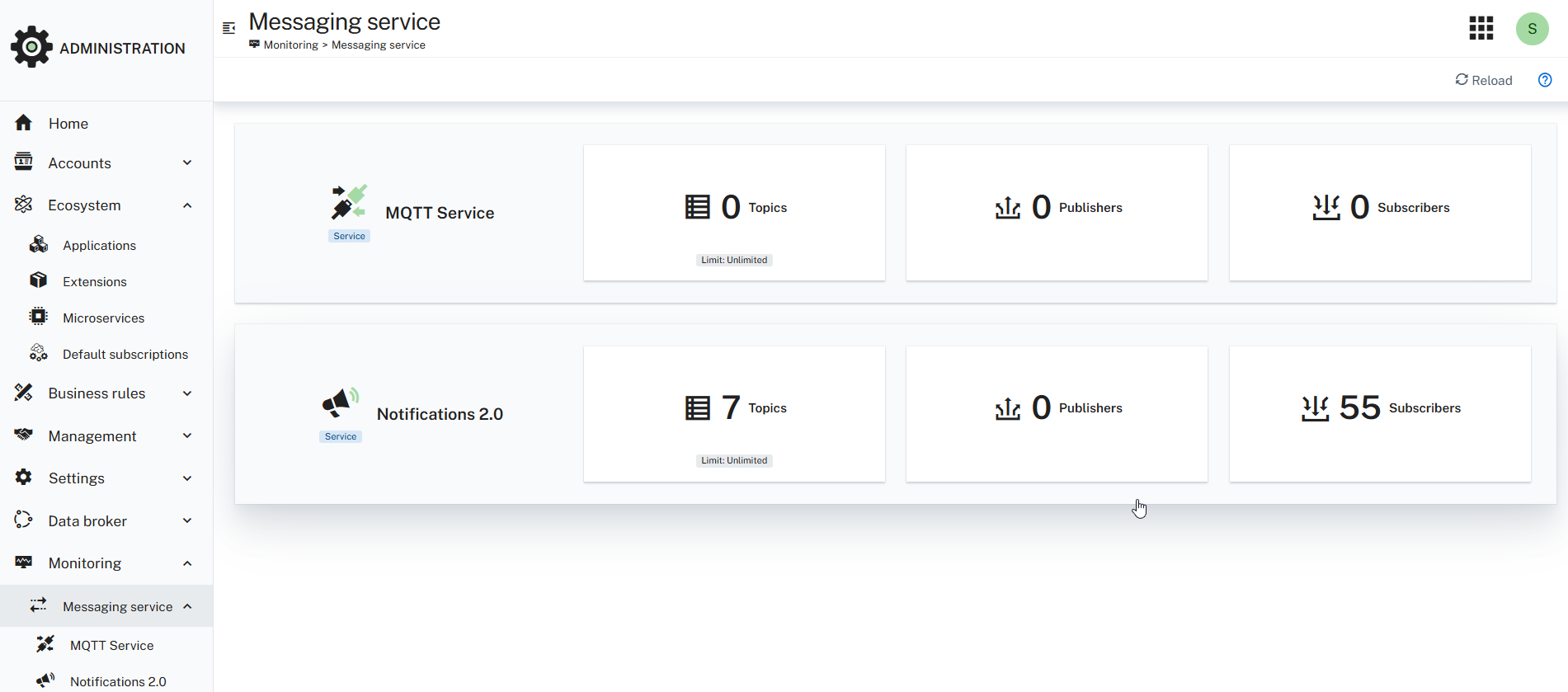

After an automated refresh, you should see a new Monitoring Navigation point to enter the management UI.

2. Select the Right MQTT Device

Now we are ready to connect a device via MQTT. There are plenty of MQTT devices out there.

Physical Device

Normally, you would select a physical device. The easiest ones already have an MQTT client embedded, and you just need to configure the broker.

There are plenty of examples of devices like smart cameras, smart gateways, PLCs, and many more.

Alternatively, you can also build your own device like using an ESP32 and attaching any sensor.
With that, you can connect to MQTT Service: https://esphome.io/components/mqtt.html

Please note: Be aware of the current limitations of MQTT Service, which could result in your device being unable to connect, such as:

• Last Will Retained Message - results in the device being rejected
• Clean Session / Clean Start must be set to true - otherwise, the device is rejected

Simulators

If you don’t have a physical device at hand, you can also use simulators to publish data to MQTT Service.

For example, you can use a nodeRED flow to generate data and publish it to MQTT Service, e.g., check out this simple flow

Another example could be a small Python script to generate data and publish it to MQTT.

Here is an example:
https://github.com/DamascenoRafael/mqtt-simulator

MQTT Client

Also, of course, you can just use any MQTT Client like MQTTx, connect manually to MQTT Service, and publish messages or subscribe on topics.

In this guide, I will demonstrate connecting using an MQTT Client and a Device Simulator.

3. Connect Device

MQTTx Device Simulator

The easiest way to simulate a device is using the tool MQTTX.
It lets you manually connect to any MQTT broker. With scripts, you can simulate payload and send this periodically to MQTT.

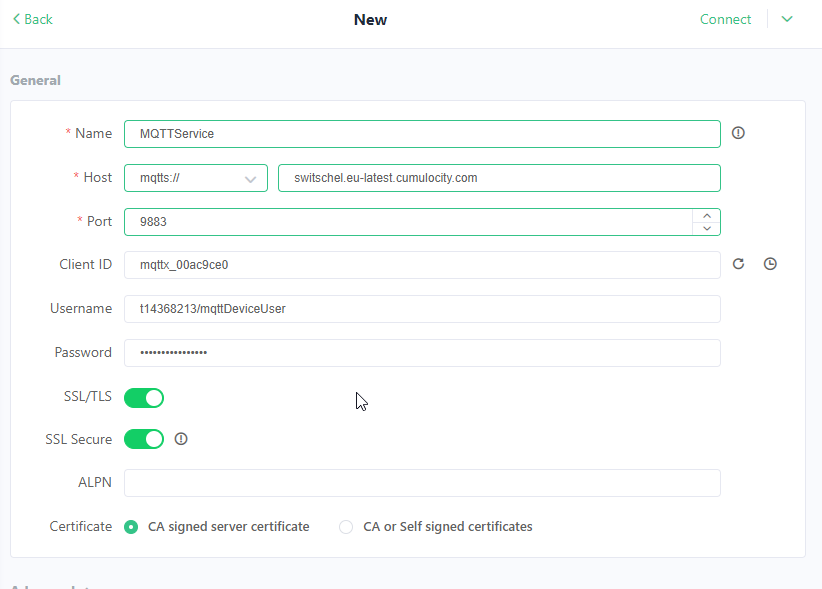

The first step is to create the connection to MQTT Service. On the left connection pane, click on + to add a new connection. Now provide the following details:

• Name: MQTTService or any other recognizable name of your choice
• Host: mqtts://<yourTenantURL> e.g., demo.eu-latest.cumulocity.com
• Port: 9883
• Username: <tenantID/username> e.g., t12345/demoUser
• Password: <Your Password>

Click on Connect to verify the connection is working.

To dynamically simulate messages, we need to create a script. In the left grey navigation bar, click on </>.
Next, click on + to add a new script and copy-paste the following:

/**
 * Simulated temperature and humidity reporting
 * @return Return a simulated temperature JSON data - { "temperature": 23, }
 * @param value, MQTT Payload - {}
 */

function random(min, max) {
  return Math.round(Math.random() * (max - min)) + min
}

function handlePayload(value, index) {
  let _value = {}
  _value.temperature = {}
  _value.temperature.value = random(10, 30)
  _value.temperature.unit = "C"
  _value.time = new Date()
  _value.deviceId = "dev4711"
  return JSON.stringify(_value, null, 2)
}

execute(handlePayload)

Click on Save and give it a meaningful name. Click Test to check if everything is working.

Let’s go back to the initial view, select and connect to MQTT Service. With the ... on top right, you can select Run Script. Select your script and apply it to Published messages.

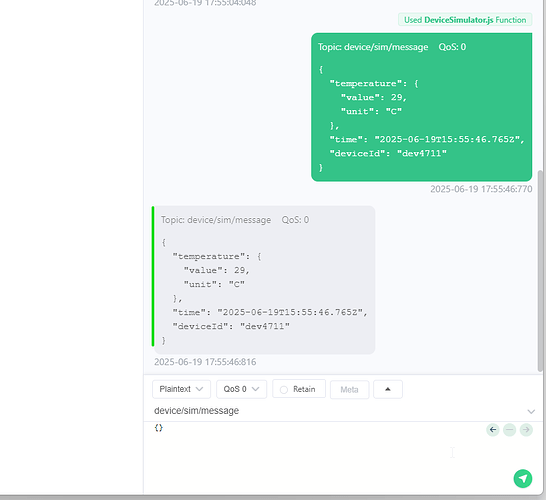

Send a message with the payload {} to topic device/sim/message. The message will be replaced with the one from the script.

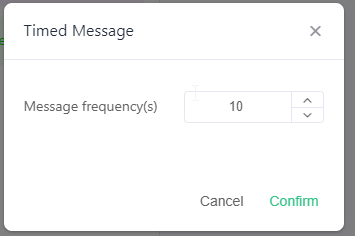

Click on the arrow to the top in the bottom window. Select Timed Message and enter 10 sec as frequency.

With the next message we send manually, a new message will be created every 10 sec and sent to MQTT Service.

NodeRED Device Simulator

Another way to simulate a device that sends data regularly is using NodeRED.

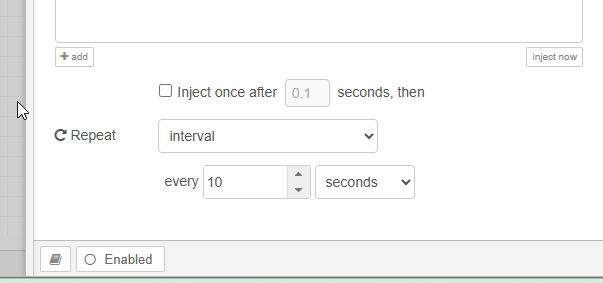

First, we need an inject node that is repeated every 10 sec.

We connect this to a function node where we generate the payload like follows:

var devices = ["dev4711", "dev4712", "dev4713"]
var randomTemp = (Math.random() * (30 - (-30)) + (-30)).toFixed(1);  //random temp from -30.0 to 30.0 degrees
var dateObj = new Date();
var idx = context.get('count') || 0;

msg.payload =
{
    "Temperature": {
        "value": randomTemp,
        "unit": "C"
    },
    "time": dateObj,
    "deviceId": devices[idx],
}
if (idx < 2)
    context.set('count', idx + 1)
else
    context.set('count', 0)
msg.payload = JSON.stringify(msg.payload);

return msg;

As a last step, we connect an MQTT out node with the following config:
Create a new Server config with:

• Server: <your Tenant Domain> e.g., demo.eu-latest.cumulocity.com
• Port: 9883
• Connect automatically: True
• Use TLS: True
• Protocol: MQTT V3.1.1 or MQTT V5
• Client ID: You can leave that blank
• Session: Use clean session

In the security tab, you need to provide:

• Username: <tenantID/username> e.g., t12345/demoUser
• Password: <Your Password>

Back in the node configuration, you should add the topic and give the node a name:

• Topic: device/sim/message
• Name: MQTT Service

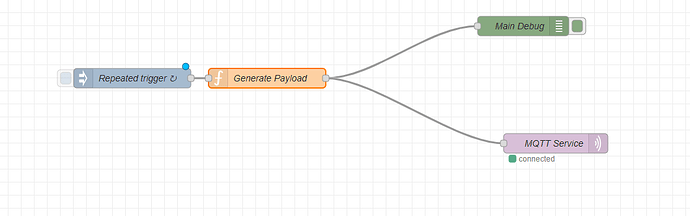

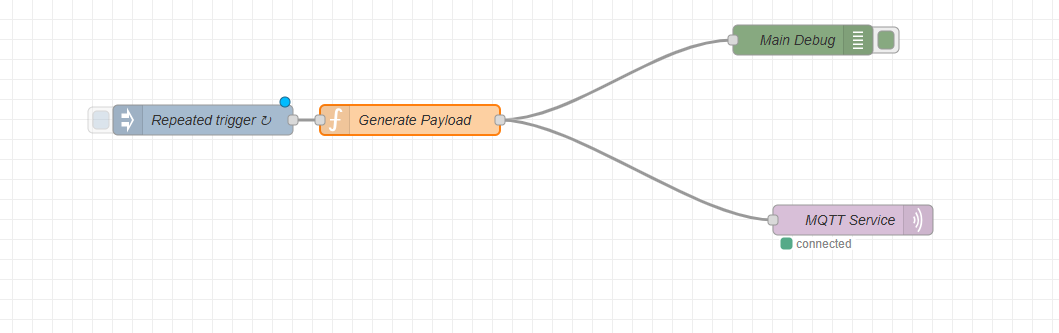

Optionally, we can add and connect a debug node to check if the message is okay.
After hitting deploy, our MQTT Device simulator is ready and will send every 10 sec a new message to MQTT Service.

You can import the full flow config by using this JSON:

[
    {
        "id": "f6f2187d.f17ca8",
        "type": "tab",
        "label": "Flow 1",
        "disabled": false,
        "info": ""
    },
    {
        "id": "6dd95995.8f3ca8",
        "type": "inject",
        "z": "f6f2187d.f17ca8",
        "name": "Repeated trigger",
        "props": [],
        "repeat": "10",
        "crontab": "",
        "once": false,
        "onceDelay": "",
        "topic": "",
        "x": 290,
        "y": 560,
        "wires": [
            [
                "901dc50a.12bf"
            ]
        ]
    },
    {
        "id": "b25e6d55.9f44d",
        "type": "debug",
        "z": "f6f2187d.f17ca8",
        "name": "Main Debug",
        "active": true,
        "tosidebar": true,
        "console": false,
        "tostatus": false,
        "complete": "true",
        "targetType": "full",
        "statusVal": "",
        "statusType": "auto",
        "x": 890,
        "y": 480,
        "wires": []
    },
    {
        "id": "901dc50a.12bf",
        "type": "function",
        "z": "f6f2187d.f17ca8",
        "name": "Generate Payload",
        "func": "var devices = [\"dev4711\", \"dev4712\", \"dev4713\"]\nvar randomTemp = (Math.random() * (30 - (-30)) + (-30)).toFixed(1);  //random temp from -30.0 to 30.0 degrees\nvar dateObj = new Date();\nvar idx = context.get('count') || 0;\n\nmsg.payload =\n{\n    \"Temperature\": {\n        \"value\": randomTemp,\n        \"unit\": \"C\"\n    },\n    \"time\": dateObj,\n    \"deviceId\": devices[idx],\n}\nif (idx < 2)\n    context.set('count', idx + 1)\nelse\n    context.set('count', 0)\nmsg.payload = JSON.stringify(msg.payload);\n\nreturn msg;",
        "outputs": 1,
        "timeout": "",
        "noerr": 0,
        "initialize": "",
        "finalize": "",
        "libs": [],
        "x": 497,
        "y": 560,
        "wires": [
            [
                "b25e6d55.9f44d",
                "31ac6556.03bb5a"
            ]
        ]
    },
    {
        "id": "31ac6556.03bb5a",
        "type": "mqtt out",
        "z": "f6f2187d.f17ca8",
        "name": "MQTT Service",
        "topic": "device/sim/message",
        "qos": "",
        "retain": "",
        "respTopic": "",
        "contentType": "",
        "userProps": "",
        "correl": "",
        "expiry": "",
        "broker": "5cb9e151.9886b8",
        "x": 880,
        "y": 600,
        "wires": []
    },
    {
        "id": "5cb9e151.9886b8",
        "type": "mqtt-broker",
        "name": "MQTT Service",
        "broker": "${tenant_url}",
        "port": "9883",
        "tls": "",
        "clientid": "",
        "autoConnect": true,
        "usetls": true,
        "protocolVersion": "4",
        "keepalive": "60",
        "cleansession": true,
        "autoUnsubscribe": true,
        "birthTopic": "",
        "birthQos": "0",
        "birthPayload": "",
        "birthMsg": {},
        "closeTopic": "",
        "closePayload": "",
        "closeMsg": {},
        "willTopic": "",
        "willQos": "0",
        "willPayload": "",
        "willMsg": {},
        "userProps": "",
        "sessionExpiry": ""
    }
]

Make sure to change the broker configuration to your tenant.

4. Confirm Device Is Connected Successfully

Now that we have at least one device / simulator connected, we can confirm that the device is sending data by either just subscribing to the same topic or checking the management UI.

As we can see, there is a new topic created and 0.1 msg/s are received. There is also one subscriber, which is a MQTTx client subscribing on the same topic.

Next steps would be to integrate it to Cumulocity.

5. Integrate with Cumulocity

Dynamic Mapper

To integrate the device to Cumulocity, we offer an open-source tool called Dynamic Mapper:

GitHub - Cumulocity-IoT/cumulocity-dynamic-mapper: The ultimate Mapper for building the bridge...

With it, you can map any payload from MQTT Service to the C8Y Domain Model in a graphical approach.

You just need to key in the topic device/sim/message and map the payload we are generating to C8Y measurements.

This is how it would look like in the end:

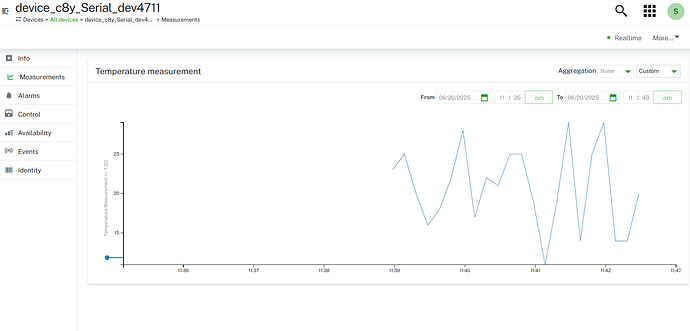

When configured to create the device automatically, you could see the device dev4711, which is receiving measurements every 10 sec.

If you want to know the detailed steps, please read the user guide or follow the following guide:

Dynamic Mapper - Map (MQTT) device data in a zero-code approach!

Introduction Since years Cumulocity IoT is providing a MQTT endpoint dedicated to the Cumulocity Domain Model to connect MQTT devices. But what about devices using a pre-defined topic structure and any custom payload which cannot be modified because they are so called “closed”? Since the latest release of Cumulocity there is a new Service in private-preview - the MQTT Service - which is a full-fledged MQTT Broker without the limitation of pre-defined topic structure and payload. Still, it does…

Custom Microservice

As an alternative, you can also implement your own microservice. The main steps you need to implement are:

1. Connect to MQTT Service either via MQTT or with the Java WebSocket client
2. Subscribe on the topics you are interested in
3. Map the data to the C8Y data format of your choice
4. Send it to C8Y using the Microservice SDK or any other client.

Summary

With MQTT Service, you have full flexibility to connect any device that can ‘speak’ MQTT with any arbitrary payload. In this guide, I demonstrated how easy it is to connect devices or simulate devices to test MQTT Service. To use the data, you can leverage existing tools like Dynamic Mapper or implement your own custom microservice.

We are looking forward to your feedback and experience with MQTT Service. Please leave a comment if you have questions about it or about this guide.
